XC948U

The XC948U features the new XC9 series intelligent medium-tonnage loader that adheres to the international stage-V emission regulations. It has an all-new stream-line exterior design with reliable performances, energy-conservation, efficiency, comfort, and convivence. The high-torque electric control engine with a 5-speep full-automatic transmission provides high efficiency. The load-sensing hydraulic system improves fuel economy and the large-span front and rear frame with tapered roller bearing pivots guarantees durability. The working device features intelligent control and high accuracy while still improving comfort. The XC948U’s low-noise panoramic cab follows ergonomic requirements. The full-tilting cab, and large-angle backward-opening hood centralizes oil drainage and allows for one-stop maintenance. The optional diversified attachments, including sliding forks, clamp, lifting appliance, and quick-change device can be installed for multi-functionality.

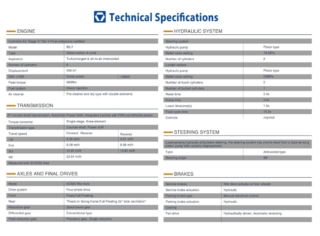

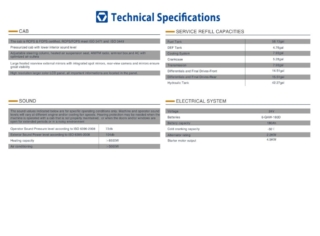

PARAMETERS

Bucket Load: 3.15 yd3

Rated Load: 9921 lbs

Rated Power: 200 HP

Operating Weight: 36,376 lbf

Maximum Breakout: 33,708 lbf

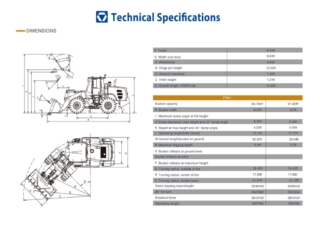

Overall Dimension (LxWxH): 2295.8 ft

XC948U PDF
